Rear Crankshaft Main Bearing Seal: Service and Repair

Transmission End Crankshaft Seal Installation - In Car

Special Tools Required
^ Driver 07749-0010000
^ Oil seal driver attachment 96 07ZAD-PNAA100

1. Clean and dry the crankshaft oil seal housing.

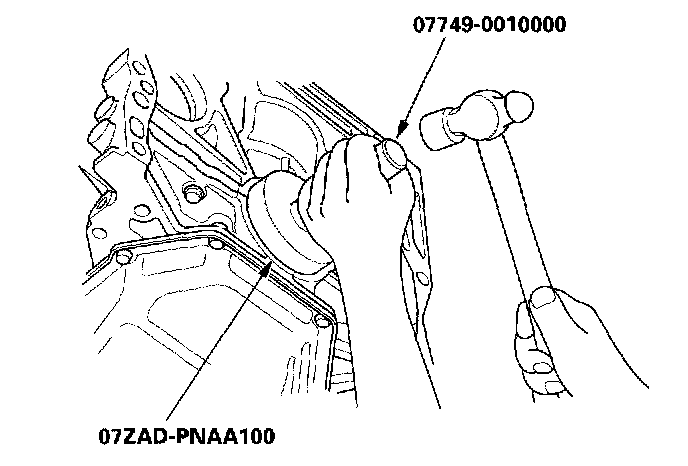

2. Use the special tools to drive a new oil seal squarely into the block to the specified installed height.

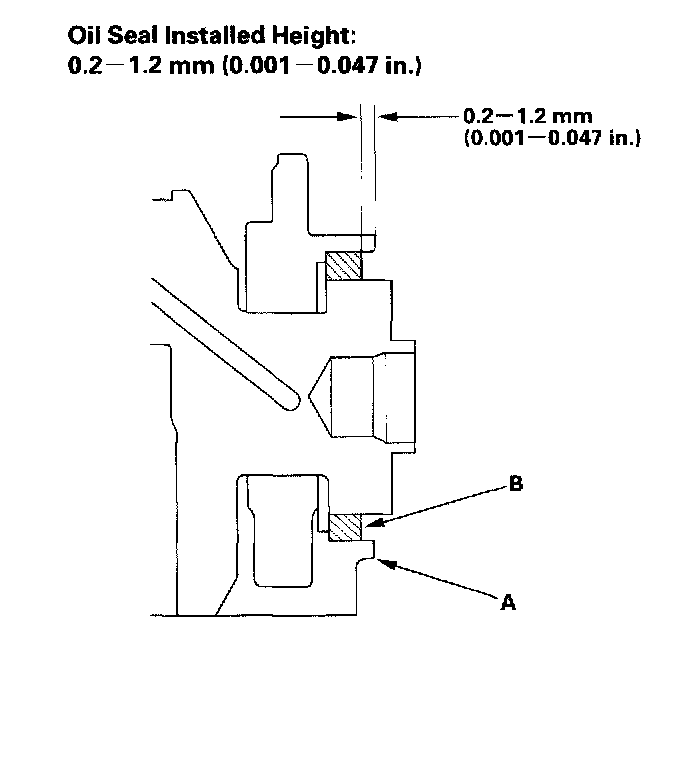

3. Measure the distance between the cylinder block (A) and oil seal (B).
Oil Seal Installed Height: 0.2 - 1.2 mm (0.001 - 0.047 inch)
